LOCATION: HOME Valve Series Ball Valve

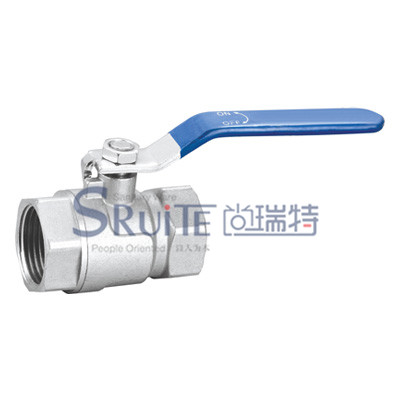

Ball Valve / SRT-1009
1.Technical standard Nominal Pressure: 1.6 MPA
2.Application: water liquid gas
3.Work temperature: -20<t<180
4.The standard of screw thread: BSPT OR NPT
5.Brass body Brass ball Brass stem Chrome plated Nickle plated or
Brass color surface, F-PORT.
P.S. The necessaries material could be changed according to clients' request.
6.The material of handle: stainless steel steel or aluminum
7.The style of handle: long handle or butterfly handle

Product parameters
